pre-install:安装依赖包：

apt install lcov pandoc autoconf-archive liburiparser-dev libdbus-1-dev libglib2.0-dev dbus-x11 libssl-dev \
autoconf automake libtool pkg-config gcc  libcurl4-gnutls-dev libgcrypt20-dev libcmocka-dev uthash-dev

一,下载及安装TPM 模拟器

IBMTPM模拟器项目页面： https://sourceforge.net/projects/ibmswtpm2/files/

下载最新的版本wget https://jaist.dl.sourceforge.net/project/ibmswtpm2/ibmtpm1332.tar.gz

mkdir ibmtpm1332
cd ibmtpm1332/
tar zxvf  ../ibmtpm1332.tar.gz
cd src/
make
cp tpm_server /usr/local/bin/

增加tpm-server.service

vi /lib/systemd/system/tpm-server.service

[Unit]
Description=TPM2.0 Simulator Server Daemon
Before=tpm2-abrmd.service

[Service]
ExecStart=/usr/local/bin/tpm_server
Restart=always
Environment=PATH=/usr/bin:/usr/local/bin

[Install]
WantedBy=multi-user.target

systemctl daemon-reload

systemctl start tpm-server.service

确认tpm模拟器启动正常

二，安装TPM2相关软件包

1，安装tpm2_tss

添加TSS用户

useradd --system --user-group tss

下载地址:

wget https://github.com/tpm2-software/tpm2-tss/releases/download/2.1.0/tpm2-tss-2.1.0.tar.gz

tar zxvf tpm2-tss-2.1.0.tar.gz
cd tpm2-tss-2.1.0/
./configure --enable-unit --enable-integration
make check
make install
ldconfig
cd ..

2，安装tpm2_abrmd

下载地址：

wget https://github.com/tpm2-software/tpm2-abrmd/releases/download/2.0.2/tpm2-abrmd-2.0.2.tar.gz

tar zxvf tpm2-abrmd-2.0.2.tar.gz
cd tpm2-abrmd-2.0.2/
ldconfig
./configure --with-dbuspolicydir=/etc/dbus-1/system.d --with-systemdsystemunitdir=/lib/systemd/system
make
make install

cp /usr/local/share/dbus-1/system-services/com.intel.tss2.Tabrmd.service /usr/share/dbus-1/system-services/

重启 DBUS

pkill -HUP dbus-daemon

修改system tpm2-abrmd.service服务配置

vi /lib/systemd/system/tpm2-abrmd.service

将ExecStart=/usr/local/sbin/tpm2-abrmd修改为ExecStart=/usr/local/sbin/tpm2-abrmd --tcti="libtss2-tcti-mssim.so.0:host=127.0.0.1,port=2321"

systemctl daemon-reload

systemctl start tpm2-abrmd.service

查看status，确认服务正常启动

3,安装tpm2_tools

git clone https://github.com/tpm2-software/tpm2-tools.git
cd tpm2-tools/
./bootstrap
./configure
make

测试tpm2-tools工具连接abrmd服务是否正常

./tools/tpm2_getrandom 4

没问题的话

make install

安装完毕

执行tpm2_pcrlist，查看是否正常输出

三，tpm2常用命令

设定tpm相关密码（-o ownership password，-e endorsement password，-l lockout password）：

tpm2_takeownership -o 1 -e 1 -l 1

Create a Primary Object in endorsement hierarchy, with objectpass as the object password, with RSA keys & SHA256 name hash algorithm, with object context saved in file po.ctx：

tpm2_createprimary -H e -K 11 -g 0x000b -G 0x0001 -C po.ctx -P 1

Create a RSA key under the previous primary key, with subobjectpass as the object password, with SHA256 name hash algorithm, with public portion saved in key.pub and private portion saved in key.priv：

tpm2_create -c po.ctx -P 11 -K 111 -g 0x000b -G 0x0001 -u key.pub -r key.priv

Load the created RSA key：

tpm2_load -c po.ctx -P 11 -u key.pub -r key.priv -n key.name -C obj.ctx

Encrypt file data.in with RSA key:

tpm2_rsaencrypt -c obj.ctx -o data.encrypt data.in

Decrypt with RSA key:

tpm2_rsadecrypt -c obj.ctx -I data.encrypt -P 111 -o data.decrypt

使用tpm2_quote对PCR签名，使用OpenSSL校验签名的步骤：

# Generate an ECC key
openssl ecparam -name prime256v1 -genkey -noout -out private.ecc.pem
openssl ec -in private.ecc.pem -out public.ecc.pem -pubout

# Load the private key for signing
tpm2_loadexternal -Q -G ecc -r private.ecc.pem -o key.ctx

# Sign in the TPM and verify with OSSL
tpm2_quote -C key.ctx -G sha256 -L sha256:16,17,18 -f plain -q 11aabb -s pcr.out.signed -m pcr.in.raw
openssl dgst -verify public.ecc.pem -keyform pem -sha256 -signature pcr.out.signed pcr.in.raw

备注：在使用tpm2_quote时，会报错如下：

ERROR: Could not convert signature hash algorithm selection, got: "sha256"

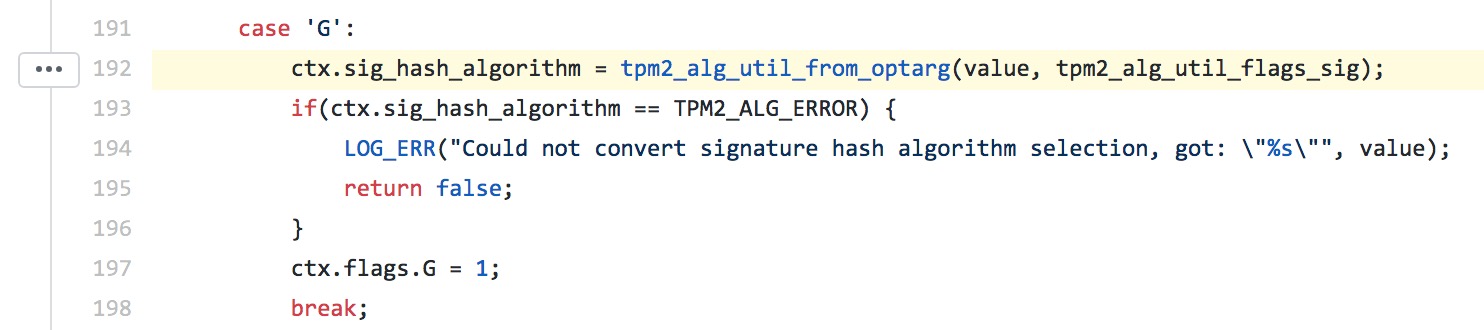

google查了半天也没结果，最后只能看源码，发现在tools/tpm2_quote.c第191开始的这段代码：

将命令行输入的-G参数后的值做个转换，然后与预定义的flags比较

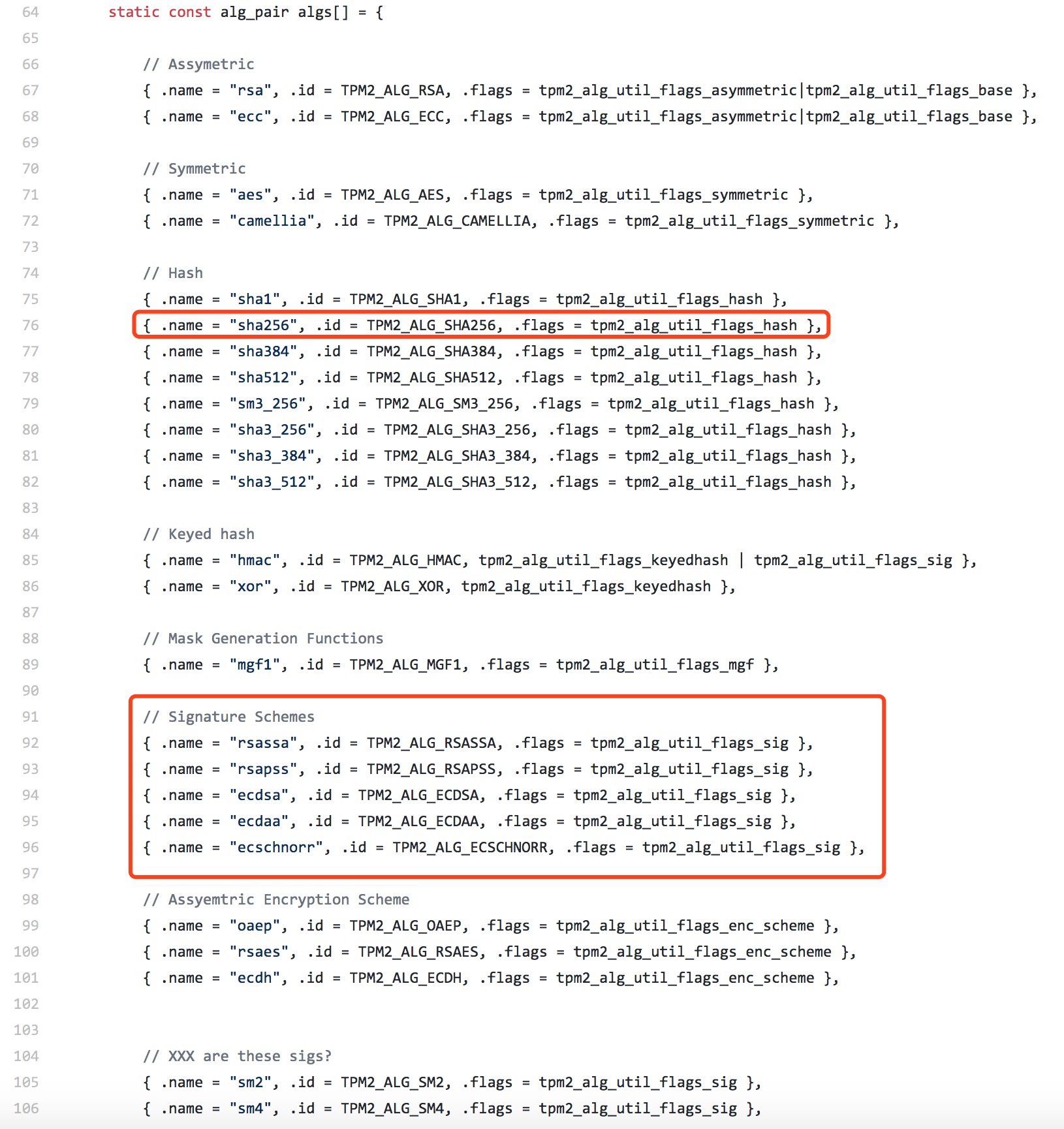

但是不知道是什么情况，这里用了“tpm2_alg_util_flags_sig”，去lib/tpm2_alg_util.c里查了定义，flags_sig里并没有sha256，所以导致报错

但是我尝试使用定义里的ecdsa之类的算法，也会报另外一个错：

ERROR: Tss2_Sys_Quote(0x2C3) - tpm:parameter(2):hash algorithm not supported or not appropriate
ERROR: Unable to run tpm2_quote

而这可能就是tpm模拟器不支持了，不知道真实物理tpm芯片是不是支持，以后有条件再测试下

解决办法：暂时只能修改tpm2_quote的代码，将192行 “tpm2_alg_util_flags_sig”改为“tpm2_alg_util_flags_hash”，然后重新编译即可
